Ford Transit Broken Wet Belt & Timing Belt Repair
Specialist repair and engine recovery for Ford Transit and Ranger 2.0 EcoBlue vehicles following a snapped or shredded wet belt.
Ford Transit Broken Wet Belt & Timing Belt Repair
When a wet belt shreds or snaps on a 2.0 EcoBlue engine, rubber debris typically blocks the oil pickup pipe. This leads to oil starvation and can cause significant damage to the turbocharger, camshafts, and bottom end.
We specialise in recovering these engines without the immediate need for a full replacement. Our process involves a thorough inspection of the internal components to determine if the engine is viable for repair.
If the damage is limited to the top end, we can often rebuild the cylinder head and clear the lubrication system to get your van back on the road.
Ford models we cover for this work
Symptoms to look out for
- Engine cut out while driving
- Red oil pressure warning light on the dashboard
- Loud knocking or metallic tapping from the engine
- Service Engine Now message appearing suddenly
- Engine turns over very quickly but fails to start
- Debris found in the oil filter or sump
What we inspect
- Condition of the oil pickup strainer for rubber blockages
- Vacuum pump for internal damage or debris
- Camshaft carrier and rocker arms for impact damage
- Turbocharger shaft play and lubrication supply
- Cylinder compression and valve timing alignment
- Main and big end bearings for signs of oil starvation
What the repair may involve
- 1Drain oil and remove the sump to clear belt debris
- 2Clean or replace the oil pump pickup pipe and strainer

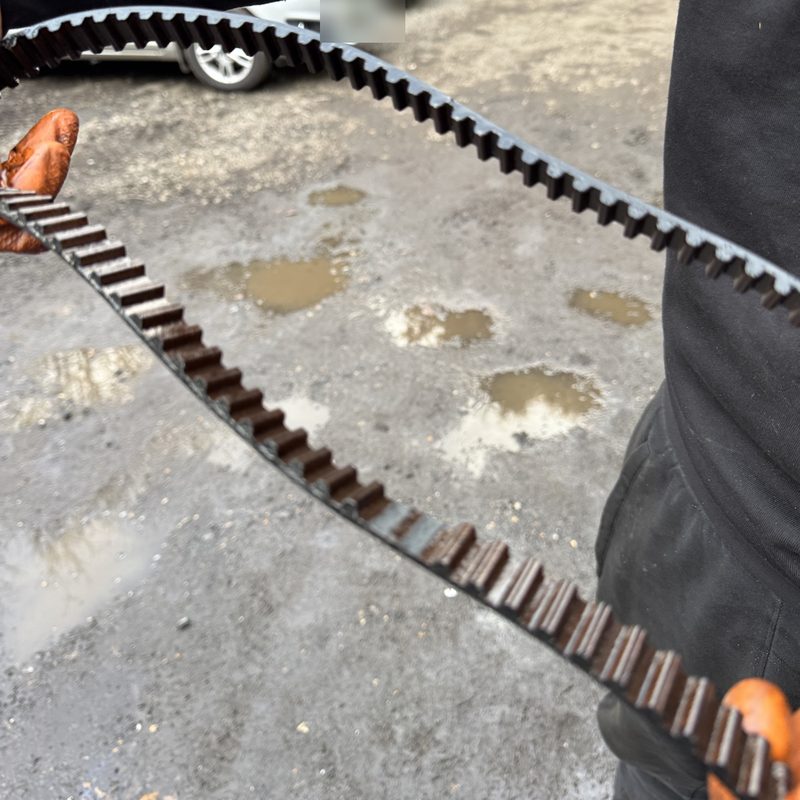

- 3Remove the front timing cover and old belt remnants
- 4Inspect the cylinder head and valvetrain for bent valves
- 5Flush the oil galleries to remove microscopic rubber particles
- 6Fit a new Ford specification wet belt and oil pump belt
- 7Replace the oil filter and fill with Ford specification oil for your engine, checked against your engine code
- 8Conduct a full pressure test and extended road test
Oil light on, hard brake pedal or low oil pressure?
Stop driving and book a diagnostic before more damage is caused.
Related help & information
Related Services
Common Symptoms
Ford Transit repairs across the region
Frequently Asked Questions
Not always. If the van was stopped quickly, the damage might be limited to the rockers and valves, which we can often repair.
We remove the sump and vacuum pump to manually clean debris, then perform multiple oil flushes to clear the internal galleries.
We fit genuine Ford or OE specification belts, seals and gaskets matched to your engine code, and we list the parts on your written quote before any work begins.
Repair time depends on the extent of the damage and parts availability for the cylinder head, so we confirm the expected time when we quote.
We fit a new belt and advise on keeping to the oil changes in your van's Ford service schedule to prevent future degradation and blockage.
It depends on your van. Ford has paid towards some out of warranty repairs as a goodwill gesture, and it has run a reimbursement programme in some markets with strict conditions on age, mileage and oil change records. Any payment is for Ford to decide, so ask a Ford dealer with your VIN and keep every service invoice.
Get your EcoBlue van back on the road
Get specialist advice and a free, no obligation quote. Call 01293 245494 or book online.
